POLAR FOX NANO DAY CAB SYSTEMS

COMPACT SYSTEM. COMFORT THAT WORKS.

All-electric 12V cooling for day cabs and box trucks. One compact Nano AC, three battery packages, and more comfort while your engine rests.

EXPLORE THE PACKAGESEXPLORE THE PACKAGESEXPLORE THE PACKAGES

EXPLORE NANO TECHNOLOGY EXPLORE NANO TECHNOLOGY EXPLORE NANO TECHNOLOGY

5,000 BTU 12V Nano Cooling

ALL-ELECTRIC No Engine Idling

214 CFM Cab Air Flow

5-YEAR BATTERY WARRANTY Peace of Mind

BUILT FOR WORK Day Cabs & Box Trucks

YOUR TRUCK. YOUR WORKDAY.

THREE PACKAGES. ONE COMPACT SYSTEM.

The same 5,000 BTU Nano AC in every package. Choose the stored energy that fits your workday.

Essential

A STRONG START

Compact cooling with a practical 200Ah battery bank.

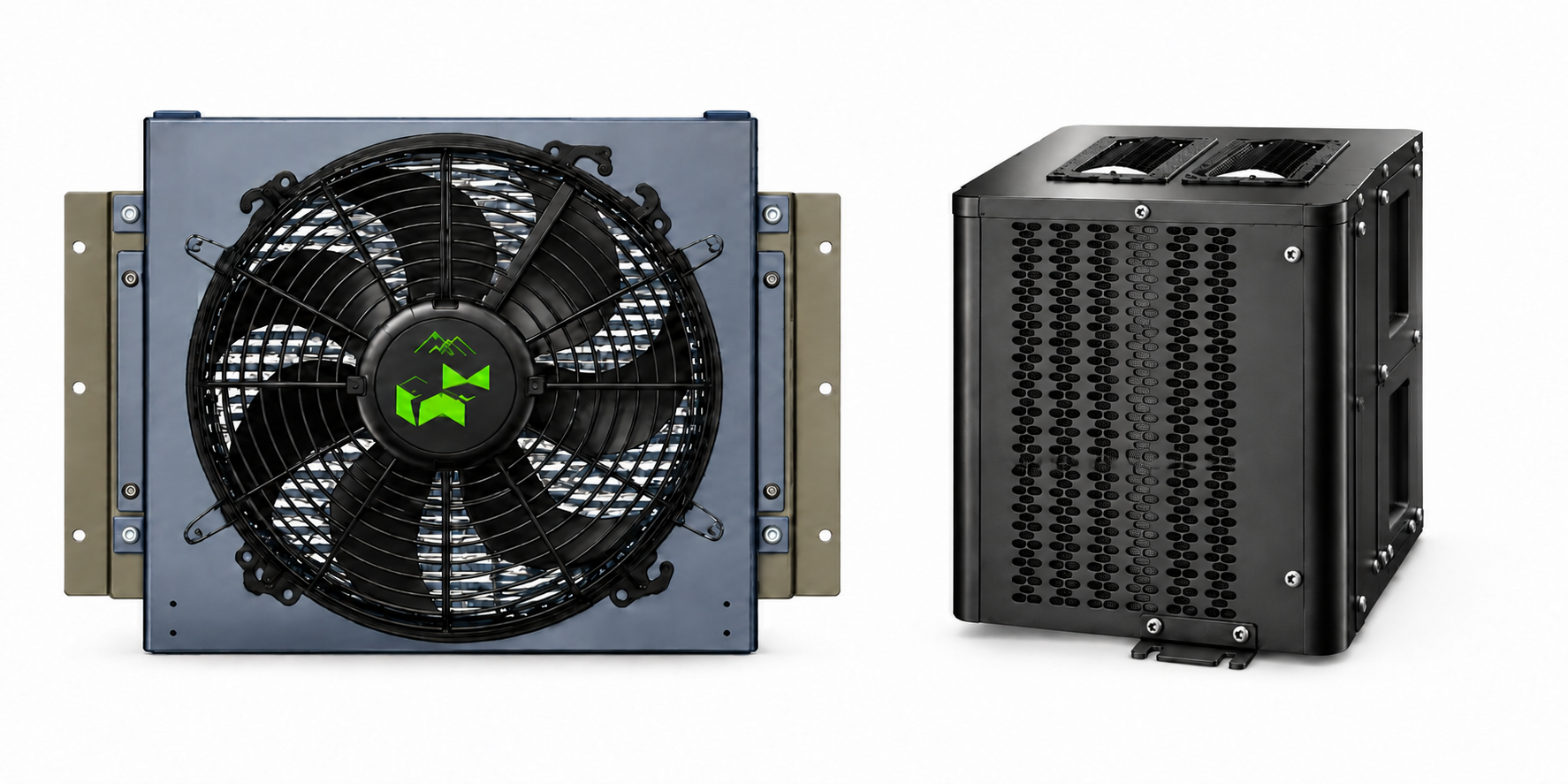

Nano condenser and interior cooling box side by side

$4,600Package price

5,000 BTU · 12V cooling
Air Flow: 214 CFM

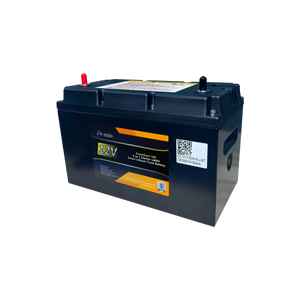

BATTERY CONFIGURATION2 × SmartStart100200Ah combined capacity
3.7 hours at rated* inputAt 612W, theoretical
Three-space tray planningTwo SmartStart100 battery positions

CHOOSE EssentialCHOOSE EssentialCHOOSE Essential

FEATURED PACKAGE

Comfort

MORE TIME BETWEEN CHARGES

More stored energy for longer engine-off breaks.

$5,400Package price

5,000 BTU · 12V cooling
Air Flow: 214 CFM
BATTERY CONFIGURATION3 × SmartStart100300Ah combined capacity
5.5 hours at rated* inputAt 612W, theoretical
Three-space tray planningThree SmartStart100 battery positions

CHOOSE ComfortCHOOSE ComfortCHOOSE Comfort

Complete

MAXIMUM STORED ENERGY

Our largest proposed Nano battery bank for longer downtime.

$6,000Package price

5,000 BTU · 12V cooling
Air Flow: 214 CFM

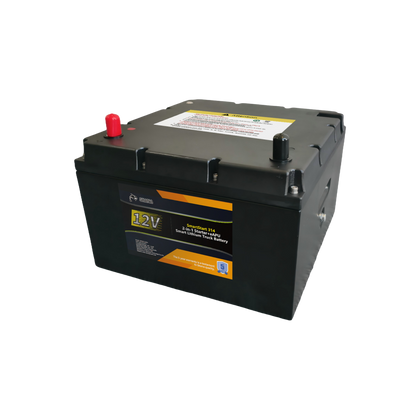

BATTERY CONFIGURATION1 × SmartStart100 + 1 × SmartStart300414Ah combined capacity
7.6 hours at rated* inputAt 612W, theoretical
Three-space tray planningMixed battery footprint requires dealer confirmation

CHOOSE CompleteCHOOSE CompleteCHOOSE Complete

(*) Rated values use JIS test conditions: outside temperature 95°F and return temperature 80.6°F. All packages use the same Nano AC; additional battery capacity increases energy storage, not cooling output. Your dealer confirms battery compatibility, tray dimensions, wiring and charging before installation.

PLAN AROUND YOUR BATTERY TRAY

THREE SPACES. A SMARTER FIT.

Based on your day cab or box truck having three battery spaces. Capacity planning is a starting point; your authorized dealer confirms the physical installation.

ESSENTIAL

Two SmartStart100 batteries provide 200Ah. Plan around two battery positions; your dealer confirms the remaining position and starting configuration.

COMFORT

Three SmartStart100 batteries provide 300Ah. Designed around the assumed three battery spaces, with final dimensions confirmed by your dealer.

COMPLETE

One SmartStart100 plus one SmartStart300 provides 414Ah. Your dealer must confirm the larger battery’s footprint, mixed-capacity compatibility, wiring and charging within your three-space tray.

MORE CLARITY BETWEEN CHARGES

RUNTIME COMPARISON

Move one slider to compare all three Nano battery packages at the same average AC power consumption.

DIRECT REPLACEMENT. BUILT FOR TRUCKS.

SMARTSTART BATTERY TECHNOLOGY

SmartStart combines engine starting and onboard power. This planning comparison uses a 12% starting reserve and 88% usable battery capacity. Your dealer confirms the reserve settings and battery configuration for your truck.

AUTOMATIC SHUTOFF AT 12%

Battery power automatically shuts off when charge reaches 12%, preserving the starting reserve.
MANUAL REACTIVATION

Manually reactivate the batteries when you are ready to start the truck.
START THE ENGINE

After reactivation, start the truck to use the reserved starting power.
PROTECTION RETURNS

If the engine is not started, the batteries automatically shut off again.

LEARN MORE ABOUT SMARTSTARTLEARN MORE ABOUT SMARTSTARTLEARN MORE ABOUT SMARTSTART

YOUR NEXT STEP

BUILD YOUR NANO SYSTEM SUMMARY.

Choose your package and review the specifications before speaking with a dealer.

Select your Nano packageAdd the optional 2kW heater (+$700)Included in your summary total when selected

Review a planning summary, then take it to your authorized dealer for fitment, installation and a final quote.

Opens your detailed estimate. No purchase or email submission is made.

FIND A DEALER

OPTIONAL HEATER UPGRADE

A WARMER WELCOME.
WHATEVER THE SEASON.

Add the 2kW heater to your Nano package for cold-weather comfort. Your dealer confirms compatibility and installation requirements.

+$7002kW heater upgrade

Your Nano system estimate

SELECTED PACKAGE

Nano Essential

A STRONG START

Compact cooling with a practical 200Ah battery bank.

PACKAGE SPECIFICATIONS

Cooling capacity: 5,000 BTU (12V)
Estimated runtime: 7.5 hoursAt 300W average load, theoretical
Battery configuration: 2 × SmartStart100200Ah combined capacity
System voltage: 12V all-electric coolingNo engine idling
Air Flow: 214 CFM
Runtime at rated* input power: 3.7 hoursAt 612W, theoretical

Two SmartStart100 battery positions. Your dealer confirms tray dimensions, battery compatibility, wiring and charging.

RUNTIME ESTIMATES

Theoretical runtime for Nano Essential
Power condition	Estimated runtime	Notes
Low average load	11.3 hoursAt 200W, theoretical	Illustrative duty-cycle average
Moderate average load	5.6 hoursAt 400W, theoretical	Illustrative duty-cycle average
Rated* input power	3.7 hoursAt 612W, theoretical	Rated AC electrical input

Theoretical calculations using 12.8V and 88% usable battery capacity, retaining a 12% starting reserve. Other loads are excluded. Actual runtime varies with temperature, insulation, duty cycle and installation.

(*) Rated values use JIS test conditions: outside temperature 95°F and return temperature 80.6°F.

SELECTED PACKAGE

Nano Comfort

MORE TIME BETWEEN CHARGES

More stored energy for longer engine-off breaks.

PACKAGE SPECIFICATIONS

Cooling capacity: 5,000 BTU (12V)
Estimated runtime: 11.3 hoursAt 300W average load, theoretical
Battery configuration: 3 × SmartStart100300Ah combined capacity
System voltage: 12V all-electric coolingNo engine idling
Air Flow: 214 CFM
Runtime at rated* input power: 5.5 hoursAt 612W, theoretical

Three SmartStart100 battery positions. Your dealer confirms tray dimensions, battery compatibility, wiring and charging.

RUNTIME ESTIMATES

Theoretical runtime for Nano Comfort
Power condition	Estimated runtime	Notes
Low average load	16.9 hoursAt 200W, theoretical	Illustrative duty-cycle average
Moderate average load	8.4 hoursAt 400W, theoretical	Illustrative duty-cycle average
Rated* input power	5.5 hoursAt 612W, theoretical	Rated AC electrical input

Theoretical calculations using 12.8V and 88% usable battery capacity, retaining a 12% starting reserve. Other loads are excluded. Actual runtime varies with temperature, insulation, duty cycle and installation.

(*) Rated values use JIS test conditions: outside temperature 95°F and return temperature 80.6°F.

SELECTED PACKAGE

Nano Complete

MAXIMUM STORED ENERGY

Our largest proposed Nano battery bank for longer downtime.

PACKAGE SPECIFICATIONS

Cooling capacity: 5,000 BTU (12V)
Estimated runtime: 15.5 hoursAt 300W average load, theoretical
Battery configuration: 1 × SmartStart100 + 1 × SmartStart300414Ah combined capacity
System voltage: 12V all-electric coolingNo engine idling
Air Flow: 214 CFM
Runtime at rated* input power: 7.6 hoursAt 612W, theoretical

Mixed battery footprint requires dealer confirmation. Your dealer confirms tray dimensions, battery compatibility, wiring and charging.

RUNTIME ESTIMATES

Theoretical runtime for Nano Complete
Power condition	Estimated runtime	Notes
Low average load	23.3 hoursAt 200W, theoretical	Illustrative duty-cycle average
Moderate average load	11.7 hoursAt 400W, theoretical	Illustrative duty-cycle average
Rated* input power	7.6 hoursAt 612W, theoretical	Rated AC electrical input

Theoretical calculations using 12.8V and 88% usable battery capacity, retaining a 12% starting reserve. Other loads are excluded. Actual runtime varies with temperature, insulation, duty cycle and installation.

(*) Rated values use JIS test conditions: outside temperature 95°F and return temperature 80.6°F.

OPTIONAL UPGRADE

2kW Heater

Add warmth for colder conditions.

Add 2kW heater+$700

2kW heater not selected

ESTIMATED PACKAGE PRICE

Package and selected heater only; installation, shipping, taxes and additional accessories are not calculated. Nano packages are purchased through authorized dealers. Your dealer confirms compatibility, fitment, installation, availability and final pricing.

PROFESSIONAL FIT. PERSONAL SUPPORT.

YOUR SYSTEM STARTS WITH YOUR DEALER.

Nano Day Cab Systems are purchased through dealers. Build your system summary, then confirm battery compatibility, tray fit, pricing and installation with your dealer.

1
CHOOSE YOUR PACKAGE
Select the package that fits your needs.
2
BUILD YOUR SYSTEM SUMMARY
Review your Nano package specifications.
3
CONNECT WITH A DEALER
Confirm compatibility, final quote and installation. Find a dealer →
