POLAR FOX NANO SERIES

COMFORTABLE COOLING FOR REAL WORK

All-electric air conditioning designed specifically for day cabs, box trucks and other space-limited applications. Stay cool and productive without running your engine.

5,000 BTU Cooling Capacity

ALL-ELECTRIC No Engine Idling

QUIET OPERATION For Better Rest

COMPACT DESIGN Rugged and Reliable

BUILD WITH NANOBUILD WITH NANOBUILD WITH NANO

COMPARE MODELSCOMPARE MODELSCOMPARE MODELS

A COMPLETE CLIMATE SOLUTION FOR DAY CABS AND BOX TRUCKS

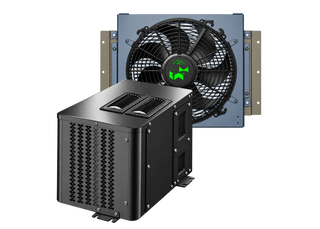

NANO AC

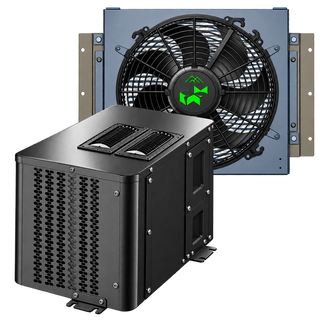

The Polar Fox Nano is a compact, high-efficiency air conditioning system built for day cabs, box trucks and other non-sleeper applications. It delivers reliable cooling with a clean, space-saving design and the same rugged durability as the rest of the Polar Fox lineup.

EXPLORE NANO SERIESEXPLORE NANO SERIESEXPLORE NANO SERIES

STAY COOL. STAY PRODUCTIVE

COMFORT WHERE YOU WORK.

Keep your cab comfortable during hot days, long hauls and job sites - without wasting fuel.

5,000 BTU Powerful Cooling

QUIET COMFORT Low Noise Design

ALL-ELECTRIC No Engine Idle

BUILT FOR WORK Rugged & Reliable

EXPLORE NANO SERIESEXPLORE NANO SERIESEXPLORE NANO SERIES

CLEAN, COMPACT INSTALLATION

DESIGNED FOR
SPACE-LIMITED TRUCKS

The Nano’s compact design makes it ideal for day cabs, box trucks and other applications with limited interior space. The condenser mounts on the rear of the cab, while the under-dash units deliver cool air through your factory vents.

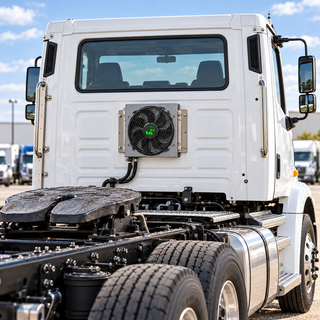

Condenser mounted on the rear of the cab

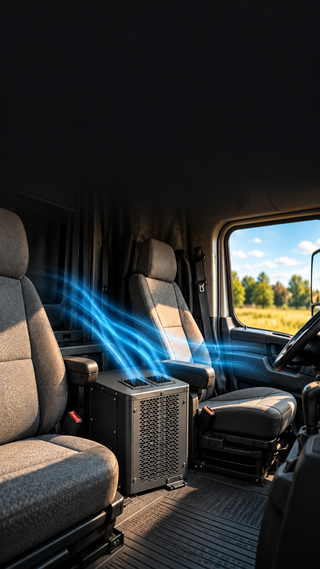

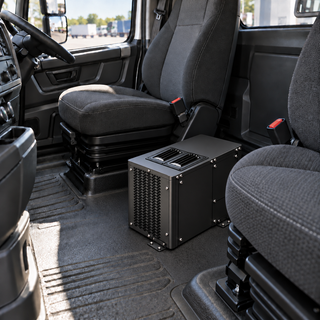

Under-dash units with factory vent integration

SPECIFICATIONS

SPECIFICATIONS
Specification	DL-1500CV	DL-2000CV
Model No.	DL-1500CV	DL-2000CV
Rated input voltage	DC12V	DC24V
Rated cooling capacity (*)	5,000 BTU	8,000 BTU
Rated input power (*)	612W	720W
Rated current consumption (*)	51A	30A
Airflow	214 CFM	311 CFM
Working refrigerant	R-134a (820g)	R-134a (730g)
Temperature Range	60.8 - 89.6°F	60.8 - 89.6°F
Max. Working Pressure	0.4Mpa (Suction) 1.8Mpa (Exhaust)	0.4Mpa (Suction) 1.8Mpa (Exhaust)
Compressor type	12V electric compressor	24V electric compressor
Weight	7kg / 15lbs (interior unit) 21kg / 46lbs (exterior unit)	7kg / 15lbs (interior unit) 21kg / 46lbs (exterior unit)
Dimensions (L × W × H)	26 7/8" × 18 5/16" × 7 9/16" (outdoor unit) 16 5/8″ × 10 1/4″ × 11 15/16" (indoor unit)	26 7/8" × 18 5/16" × 7 9/16" (outdoor unit) 16 5/8″ × 10 1/4″ × 11 15/16" (indoor unit)
