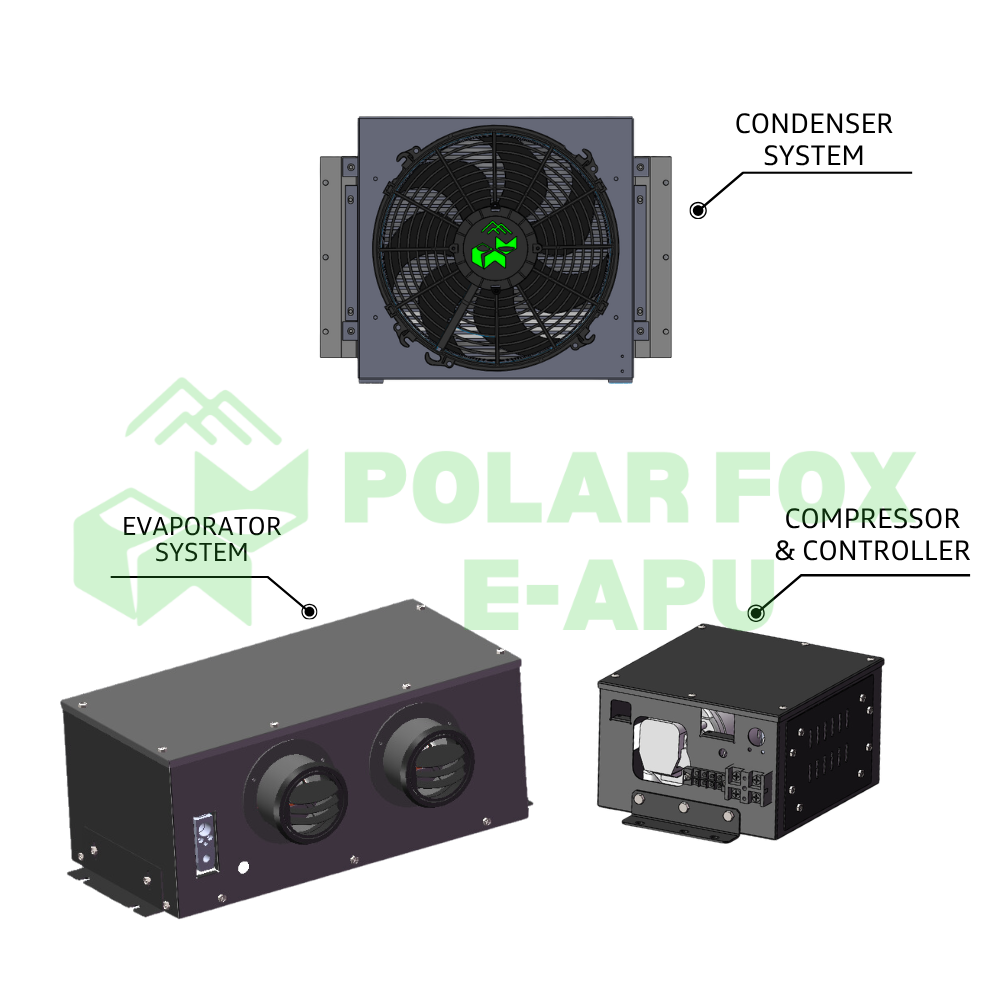

Polar Fox Elite air conditioner condenser, evaporator and compressor control unit

Polar Fox Elite Air Conditioner 12V, 7,500BTU

Name: Polar Fox Elite Air Conditioner 12V, 7,500BTU
Brand: Polar Fox Technologies LLC
SKU: DL2000EL
Price: 3500.0 USD
Availability: InStock

DL2000EL

$3,500.00

In stock

FIND A DEALERFIND A DEALERFIND A DEALER

Purchasing, fitment, and installation are confirmed through your authorized dealer.

12V · 7,500 BTU
All-Electric Cooling
1-Year Limited Manufacturer Warranty

POLAR FOX ELITE AIR CONDITIONING

Powerful cooling. Engine off.

Premium all-electric air conditioning engineered for sleeper trucks, without running your engine. Choose the Elite 7.5K for a 12V system or the Elite 10K for a 24V system. Battery and supporting power-system components are selected separately.

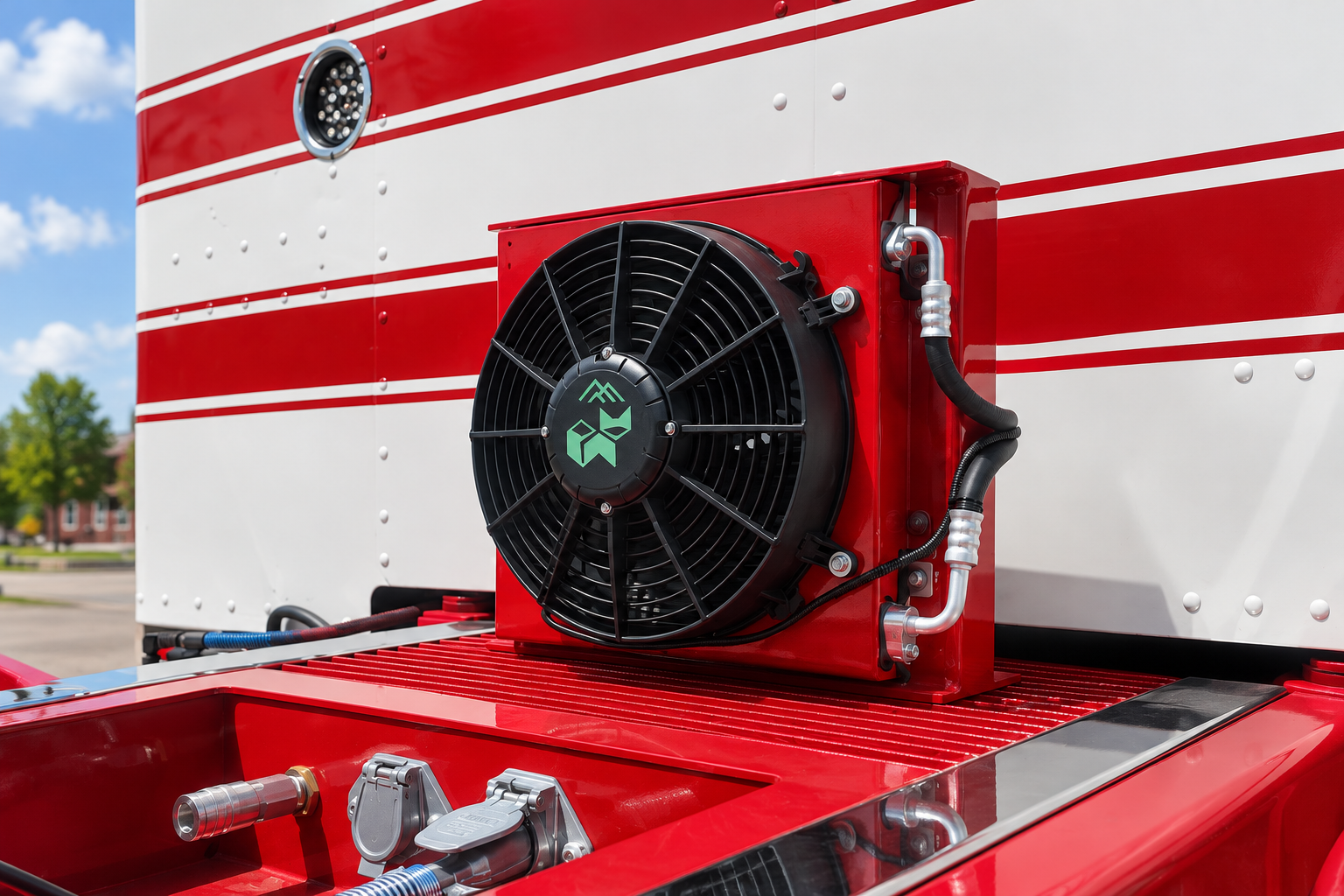

Polar Fox Elite condenser installed behind a red and white sleeper truck cab

Key Benefits

All-electric cooling

Cool your sleeper without keeping the truck engine running.

Designed for better rest

Quiet operation and a rear-cab condenser help keep the sleeper comfortable.

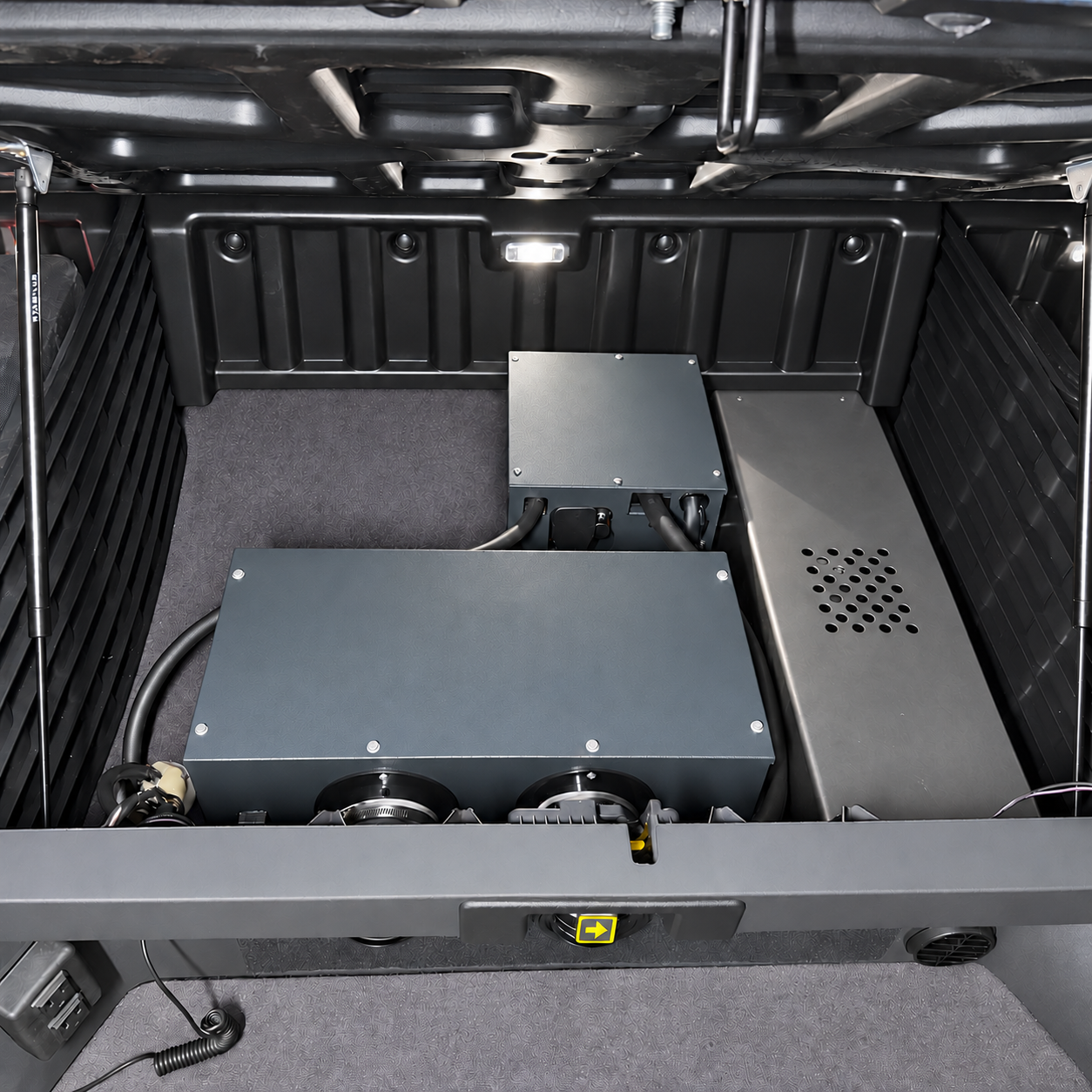

Polar Fox Elite air conditioning equipment installed under a sleeper bunk

Built around your sleeper

Under-bunk climate and control units keep the sleeper interior clean and spacious.

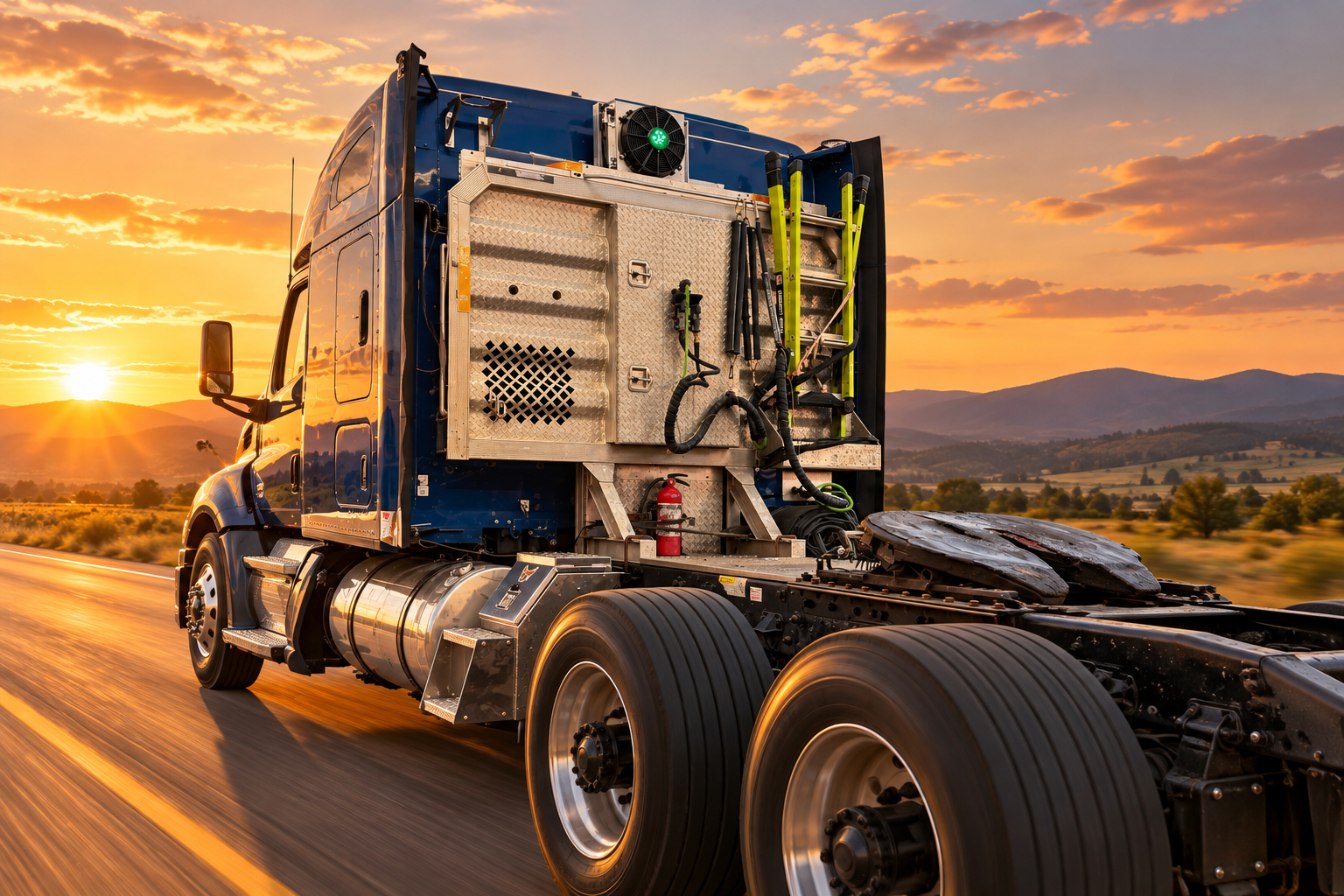

Blue sleeper truck on the road at sunset with a Polar Fox condenser mounted above its headache rack

SLEEPER-TRUCK COMFORT

Built for life on the road.

Designed for customers building an electric cooling system around their sleeper truck. Choose the voltage that matches your electrical architecture and have your installer confirm fitment and system requirements.

BUILT AROUND YOUR SLEEPER

Three components. One clean installation.

A compact split-system design keeps the evaporator and compressor under the bunk, with the condenser mounted behind the cab.

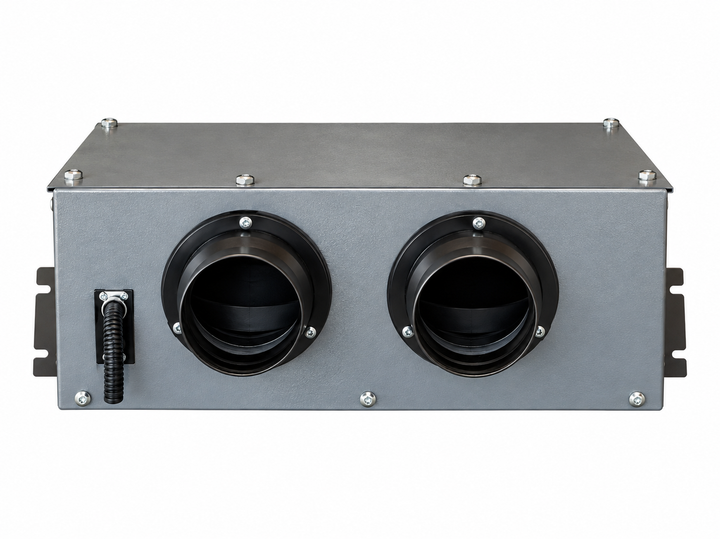

Evaporator Unit

Designed to fit under the bunk, the evaporator avoids the wall-mounting holes required by a traditional wall-mounted unit. Its air hoses can integrate with compatible factory ductwork for a simple, clean installation with a factory-installed feel.

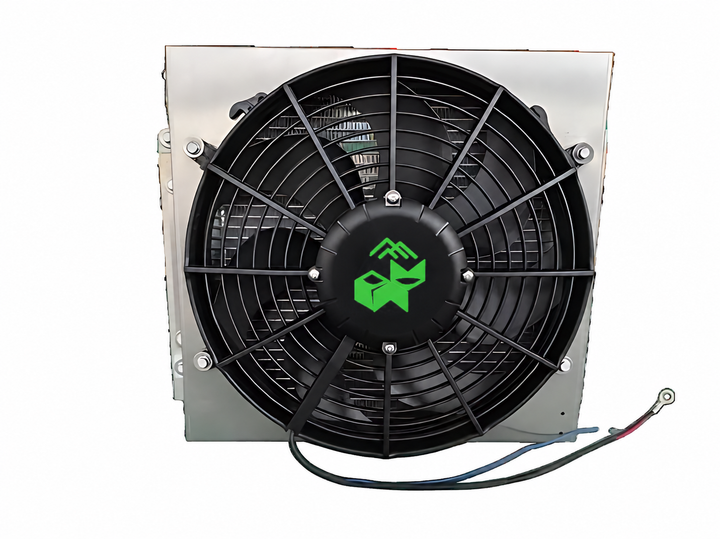

Condenser Unit

The rear-cab fan assembly uses lightweight stainless-steel construction for corrosion resistance and quick installation. Mounted behind the truck, it releases heat outside the sleeper.

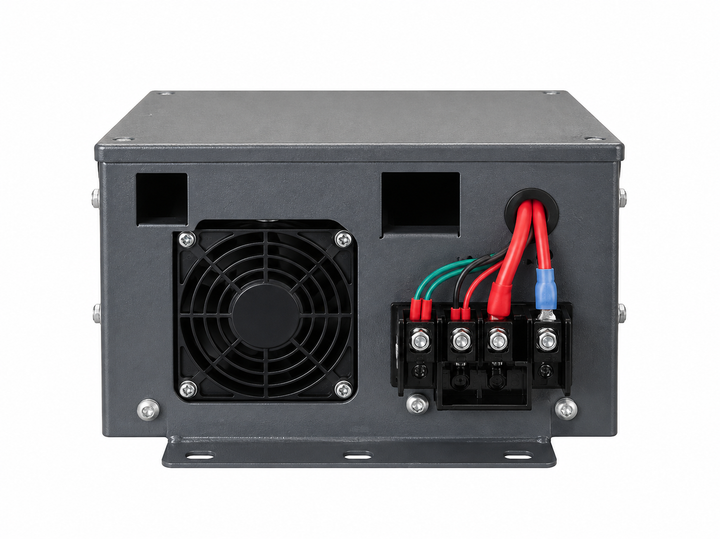

Compressor Unit

The compact compressor box fits under the bunk, keeping its components sheltered from weather. Its small footprint makes efficient use of sleeper space, while the protected location helps extend component life.

POLAR FOX ELITE SERIES

Powerful cooling. Built for life on the road.

All-electric air conditioning engineered for sleeper trucks, without running your engine.

7,500–10,000 BTU

Powerful cooling. Choose 7,500 BTU with the 12V model or 10,000 BTU with the 24V model.

All-Electric

No engine idling.

Powerful cooling. Built for life on the road.

Quiet Operation

For better rest.

Built for Trucks

Rugged and reliable.

12V OR 24V ELECTRIC COOLING

Choose the power behind your comfort.

The Elite 7.5K delivers 7,500 BTU from a 12V system. The Elite 10K delivers 10,000 BTU from a 24V system. Pair the AC with compatible batteries, charging and power components selected for your application. Runtime depends on your complete system and operating conditions.

1-year limited manufacturer warranty

WARRANTY & SUPPORT

Drive with confidence.

Elite air conditioning is backed by a one-year limited manufacturer warranty. Contact our US-based engineering and support team for help with product selection, fitment or service. Review the warranty policy for coverage and terms.

US-Based Engineering & Support

Talk with the Polar Fox team about product selection, fitment and installation.

Parts & Service

Get help finding service resources and the right replacement parts.

Contact SupportContact SupportContact Support

Technical specifications

Item	Value
Rated input voltage	DC12V
Working voltage range	DC10.8–15.5V
Rated cooling capacity	7,500 BTU
Rated input power	600 W
Rated current consumption	50 A
Current draw range	25–70 A
Airflow	250 CFM
Working refrigerant	R-134a (630 g)
Compressor type	12V electric compressor
Weight	7 kg / 15 lb (interior unit); 25 kg / 55 lb (exterior unit)
Dimensions (L × W × H)	26 7/8″ × 18 5/16″ × 7 9/16″ (outdoor unit); 21″ × 12 3/8″ × 8 3/4″ (indoor unit)
Rated-value test conditions	JIS: outside temperature 95°F; return temperature 80.6°F
Climate conditions	T1 (69.8°F–109.4°F)

Installation & Compatibility

The condenser mounts behind the cab; the climate unit and control box fit under the bunk. Have your installer confirm mounting space, electrical-system voltage, cable sizing and routing. Pair the AC with compatible battery and charging components.

What's included

Review the components pictured in the supplied kit. Your installer can confirm any additional accessories needed for your application.

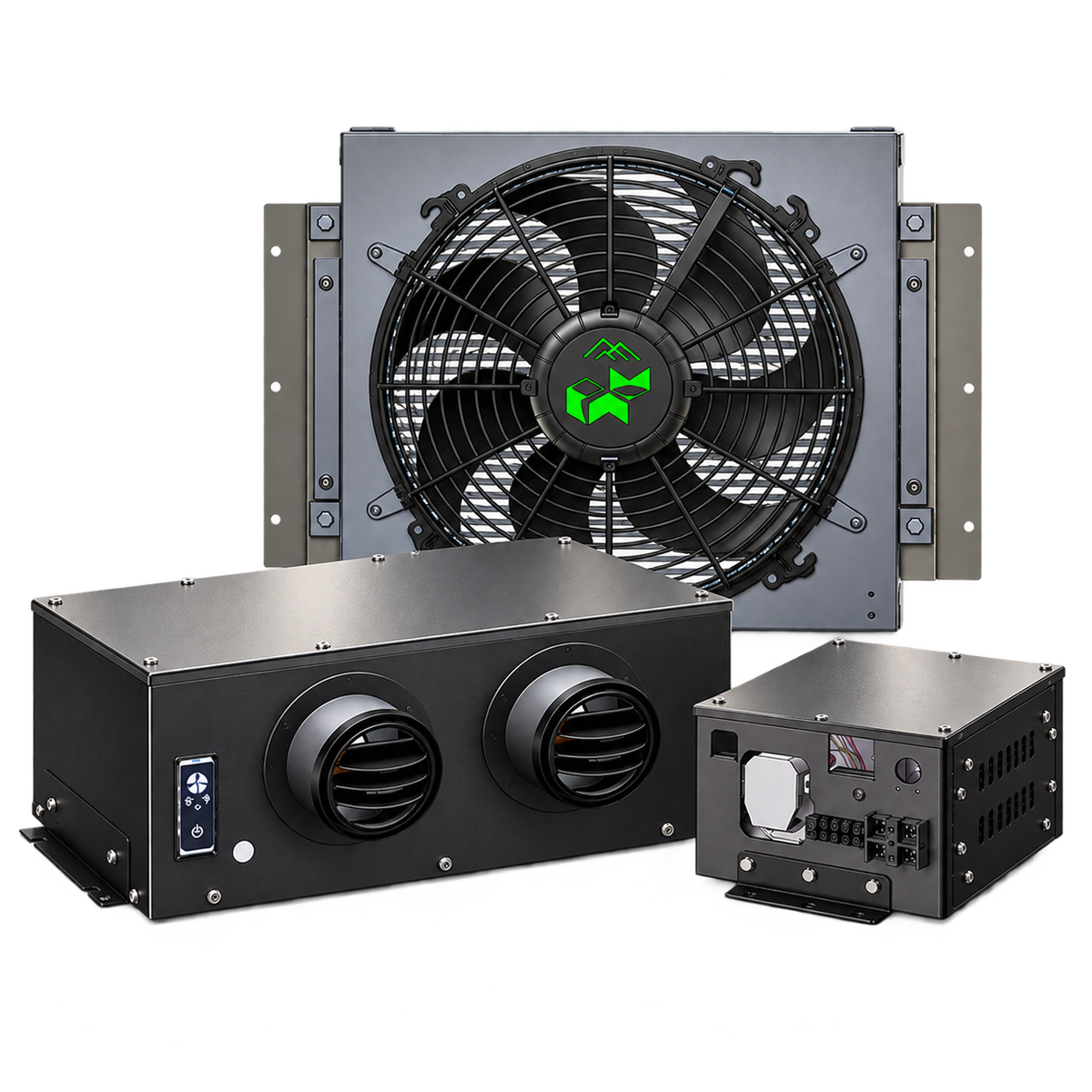

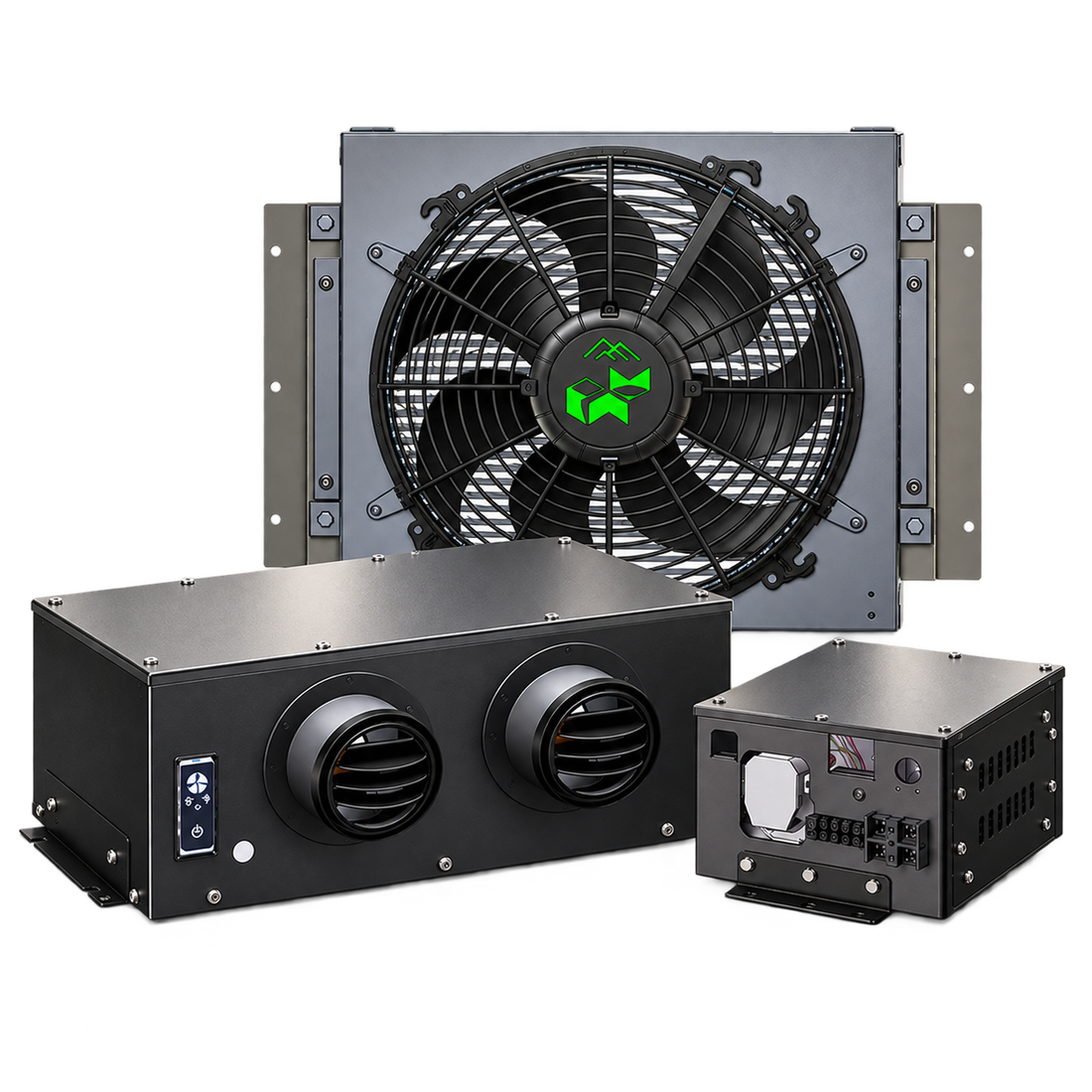

Polar Fox Elite Air Conditioner 12V, 7,500BTU — Elite air-conditioning assembly: rear-cab condenser, under-bunk climate unit and control box. Battery and supporting power components are selected separately; confirm supplied accessories with your dealer.
