Polar Fox Aquano 10K Coolant Heater (10KW)
$1,499.00
Quantity:

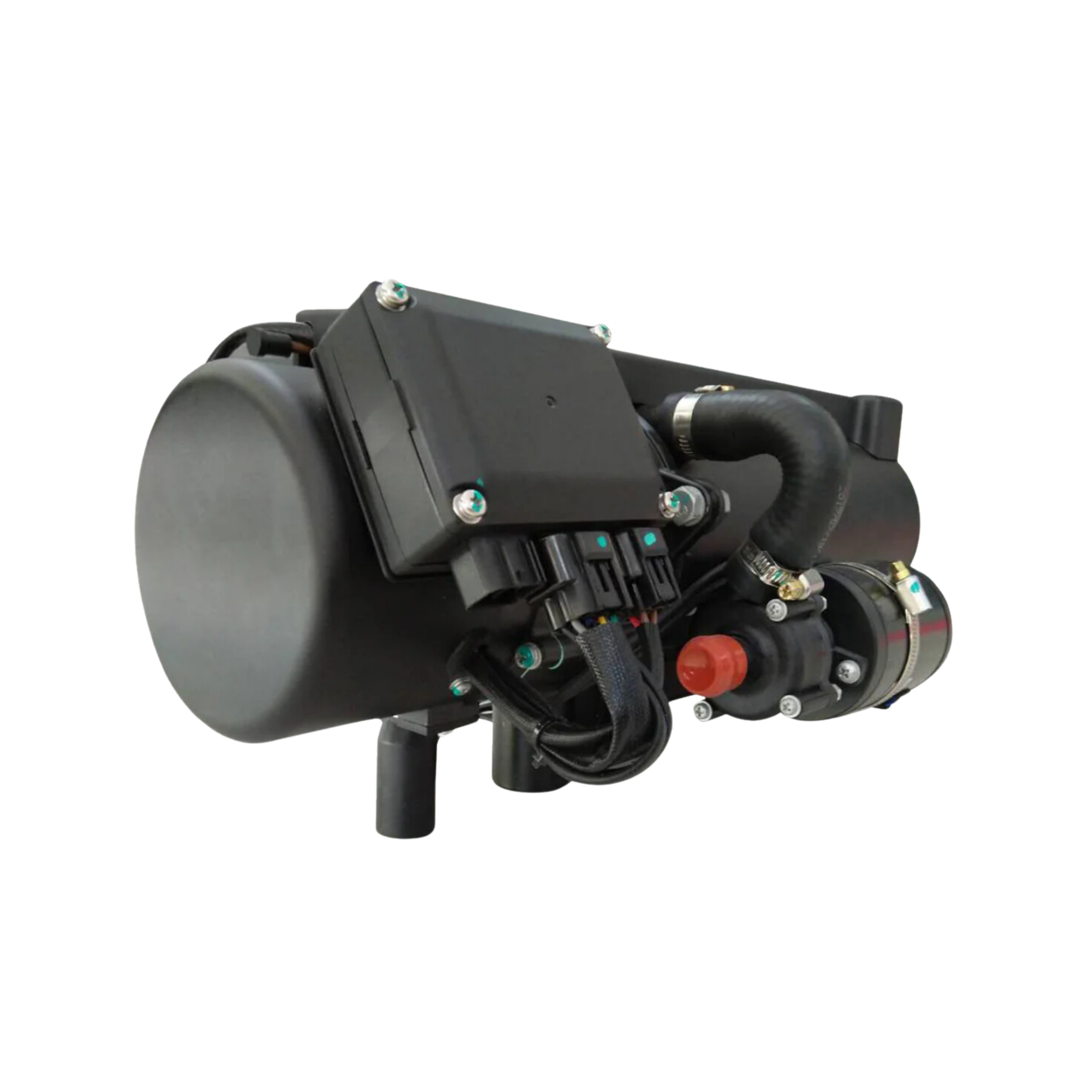

Polar Fox Aquano 10K Coolant Heater (10KW)
Product Description:
The Aquano hydronic diesel heater is a powerful yet compact heating solution designed for engines and passengers in severe cold weather. Its unique design makes it ideal for use in vans, buses, boats, campervans, motorhomes, and campervan conversions. The heater operates independently of the engine to preheat the engine and defrost the windshield. It can also heat up domestic water when used with a heat exchanger. The investment is justified by its lower fuel consumption, reduced engine wear, lower emissions, and reduced burden on aftertreatment systems. Additionally, the heat from the coolant can be distributed via the vehicle’s existing exchangers and air vents, providing hot air for the passenger compartment.
- For the past 50 years, HLN has been the factory pre-installed diesel heater provider for manufacturers of trucks, construction vehicles, and buses, many of whom rank among the top 10 worldwide by sales volumes.
- All the heaters are E-mark certified and widely used on vehicles operating in Europe, the Mid-East, Asia-Pacific, and the Americas.
- This Pro version of the heater has an automatic altitude adjustment function and is capable of operating at 5,000m / 16,000ft height.
- This Pro version has a brushless fan motor that can operate for over 5,000 hours.
- This Pro version has integrated intake and exhaust mufflers.
- 2 year manufacturing warranty
Technical Specifications:
| AQUANO 10K | |
| Item | Parameter |
| Heating capacity (kW) | 4.4 / 10.3 |
| Fuel consumption (l/h) | 0.51 / 1.29 |
| Working voltage (V) | 12/24 |
| Power consumption (W) | 74.4 / 104.4 |
| Heating air volume flow against 0.5 mbar (m³/h) | 170 |
| Weight (kg) | 7 |
| Outline dimensions (L x W x H) (inch) | 17.1 x 8.3 x 7.0 |
| Operating ambient temperature (°F) | -49 to +131 |
| Storage temperature (℃) | -67 to +158 |
Bunk Heater Features:
- Heating Power: 10KW / 34,000 BTU
- Voltage: 12V
- Universal fitting
- Auto altitude adjustment up to 5,500m
- Wifi connection to phone, with APP control to start, stop and set several times in a week to automatic start/stop
- Heat up water
- Reduces engine wear from cold starts.
- Lowers burdens on diesel engine after-treatment systems.
- Easy to install and maintain.
- E-mark certified
Standard Kits:
Installation Schematic:
