ELITE-10K-400AH(12V)
Complete technical resources for the Polar Fox Elite-10K-400AH(12V) system, including specifications, schematics, wiring diagrams, installation information, and user manuals.
Premium Dual-Purpose Batteries
Four Polar Fox dual-purpose lithium batteries provide both engine starting and deep-cycle power, eliminating the need for separate battery banks while reducing weight and maximizing reliability.
Fast Charging Performance
The battery system charges directly from the truck's factory alternator, delivering rapid recharge times without requiring an alternator upgrade or additional battery charger.
Simple Installation & Clean Setup
Designed for quick installation and straightforward integration, the Elite-7.5K system minimizes complexity and provides a clean, factory-like appearance.

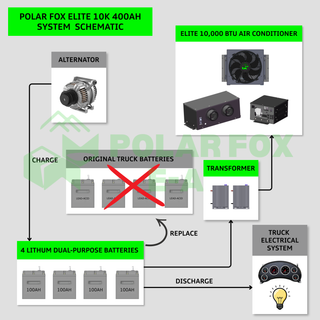

SCHEMATIC
Detailed system schematics illustrating component layout, electrical connections, and power flow for the Polar Fox Elite-10K-400AH(12V) system.

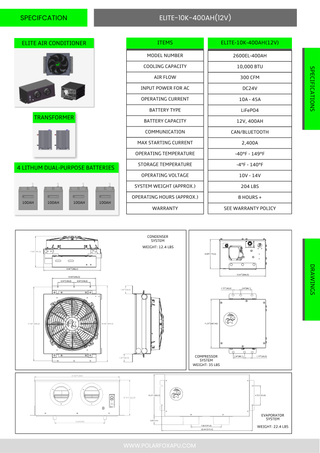

SPECIFICATION
Detailed technical specifications for the Polar Fox Elite-10K-400AH(12V) system, including cooling capacity, battery configuration, dimensions, electrical requirements, and performance characteristics.
